AMT-10020

American Modular Tooling Fixturing Kit features:
  • 7075-T6 aluminum components
  • Hard coat anodized
  • 0.02mm (0.0008") accuracy for flatness, square, parallel and center to center of hole location
  • Components can be used across system sizes
  • AMT kits are expandable and compatible with Hollows and other AMT components.

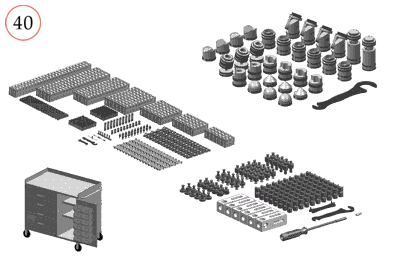

AMT-10020, Expansion Kit, System 40
Accurate, strong, reusable AMT Hollows allow heavy parts to be fixtured with ease and confidence.
Contents Qty Description
AMT-09507 6 Hollow 40 x 80 x 120 mm, Commercial Grade
AMT-09509 6 Hollow 40 x 80 x 200 mm, Commercial Grade
AMT-09511 4 Hollow 40 x 80 x 220 mm, Commercial Grade
AMT-09514 6 Hollow 40 x 80 x 400 mm, Commercial Grade
AMT-09518 4 Hollow 40 x 80 x 560 mm, Commercial Grade
AMT-09524 4 Hollow 40 x 80 x 800 mm, Commercial Grade
AMT-09529 2 Hollow 40 x 80 x 1000 mm, Commercial Grade
AMT-11605 5 Off-Grid Block, 40 mm
AMT-15235 3 Cone 90° 35 x 30 mm
AMT-15248 3 Sphere 25 x 30 mm
AMT-15258 2 Vee 90° 35 x 30 mm
AMT-15259 2 Vee 60° 35 x 30 mm
AMT-15270 4 Wall, 1/2, 35 x 30 mm
AMT-15271 2 Wall, 3/4, 35 x 30 mm
AMT-15305 2 Spring Element 30 mm
AMT-15320 6 Rotary Element 30 mm
AMT-15325 4 Pivot Element 30 mm
AMT-15330 2 Rotary/Pivot Element 30 mm
AMT-15340 3 Ball Joint 30 mm
AMT-17212 10 Retention Bolt, Combi M10
AMT-17213 20 Retention Bolt, Double M10
AMT-17218 6 Off-Grid Retention Bolt 20 x 10.7 mm
AMT-17233 40 Retention Bolt Lock, 40 mm
AMT-17271 10 Bolt Disc with Shoulder 30mm M10
AMT-17202 132 Shouldered Dowel 20 x 30 mm M10
AMT-17212 20 Retention Bolt, Combi, 20 x 30 mm M10
AMT-17242 64 Chase, Double M10
AMT-17221 64 Nut, Double M10
AMT-17235 10 Retention Bolt Lock 80 mm
AMT-17241 20 Chase, Single M10
AMT-17220 20 Nut, Single M10
AMT-17248 50 End Cap, 40 x 80 mm
AMT-17264 50 Screw 50 mm M10 SHC
AMT-10048 1 Workstation with Drawers
Note: All kits include needed tools
AMT-10020
$27,989.57
